9408 Floating Ball Dissolved Oxygen System

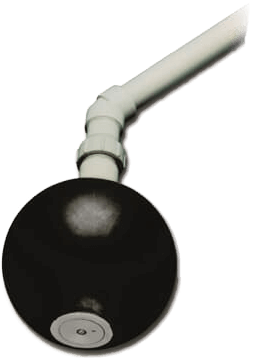

Brand: ABB GroupThe 9408 Series dissolved oxygen system comprises a flat-ended sensor mounted into a relatively large diameter spherical flotation collar. This form of construction presents to the sample a surface on which it is difficult for rags and other large solids to lodge. For more demanding applications, on-line cleaning is available using the water wash option.
Features- Reduced sensor fouling design
- minimizes operational costs
- Low maintenance, long-life sensor
- easy to maintain
- Complete systems and kit versions available
- satisfies a wide range of applications
- On-line water-wash option
- extends duration between maintenance reducing operational costs
- Stainless steel mounting brackets
- eliminates corrosion problems
Specifications
Brand
Operating Temperature
- 0° to 40° C (32° to 104° F)
Operating Pressure
- Atmosphere
Liquid Velocity
- Minimum 30 cm/s (11.8 in./s)
Accuracy
- ±0.2 mg/l or ±2% saturation within ±10° C (50° F) of the calibration temperature in the range 0 to 35° C (32° to 95° F)
Mounting
- Pipe mounting
Material of Construction
- Polypropylene
Cable Length
- 10 m (32.5 ft.) fitted as standard
- Maximum distance 100 m (325 ft.) via junction box
