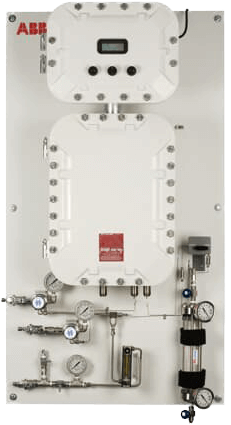

RVP4500 Series Reid Vapor Pressure Analyzer

Brand: ABB Group

Increase your gasoline blending profits with process Reid Vapor Pressure measurements and automatic air saturation of the sample.
The ABB RVP4500 Series accurately measures Reid Vapor Pressure throughout the gasoline range and its feedstocks. The RVP4500 Series offers a simple, reliable, compact, single cell design that requires minimal operator interface, minimal maintenance and no calibration. It validates every analysis with self-diagnostics.
Features
  • Microprocessor based on single board computer
  • Single cell design
  • Approximate cycle time 7.5 minutes
  • Measurement range 0 to 20 psi
  • Low sample volume  2.5 ml
  • Explosion proof
  • Repeatable, reproducible, and accurate
  • Require minimal operator interface
  • Instrument checks operation via self-diagnostics
  • Small compact design

Specifications

Brand

Environmental Protection

  • IP66 (NEMA 4 equivalent)

Ambient Temperature

  • 0° to 32° C (32° to 90° F)
  • 0° to 40° C (32° to 104° F) with Vortex option

Humidity

  • 95% relative humidity, non-condensing

Mounting

  • Wall mount
  • Floor – Optional dolly

EMI / RFI

  • Conform to Class A industrial environment

Certifications & Approvals

  • CSA/NRTL
  • ATEX
  • IECEx

Power Supply

  • 100-240 Vac, 50 to 60 Hz

Power Consumption

  • 150 W

Process Connection

  • ¼" (6.4 mm) tube, minimum

Supply Pressure

  • 414 kPa (60 psig) minimum

Measurement Range

  • 0 to 20 psi

Cycle Time

  • Approx. 7.5 minutes
