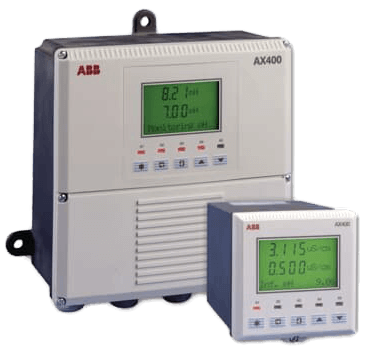

AX433 Dual Channel Transmitter for 4-Electrode Conductivity Cell

Brand: ABB Group

The AX433 conductivity transmitter enables two continuous measurements of mS/cm conductivity with simultaneous local display and transmission via analog outputs. The transmitter is designed for use with ABB’s 4-electrode conductivity cells to measure with exceptional accuracy and performance. It incorporates the latest technology to provide a highly reliable, flexible, feature-packed device that satisfies a diverse range of process monitoring and control applications.
Features
  • Cost effective
    • select one or two conductivity inputs or combine pH/Redox (ORP) with conductivity in one analyzer
  • Advanced measuring capabilities
    • conductivity range up to 1,999 mS cm-1
    • selectable concentration ranges:
      • 0 to 15% NaOH, 0 to 18% HCl, 0 to 20% H2SO4
      • 0 to 40% H3PO4, 0 to 20% NaCl and user-defined
  • Dosing control functionality
    • long dose diagnostic alarm
    • initial charge function
  • Reduced installation cost
    • easy access terminations; reduced panel space
  • High functionality at minimum cost
    • three alarms and two fully-isolated current outputs
    • direct linear, reverse acting or bi-linear output
  • Expanded monitoring and control
    • add-on option board provides a total of five alarm relays and four current outputs
    • service logbook providing historical data
  • Reduced yearly maintenance costs
    • 12 to 30 Vdc option negates the need for costly safety tests

Specifications

Brand

Range

  • 0 to 2,000 mS/cm
  • Concentration: Uup to 15% NaOH, 18% HCl, 20% H2SO4 or NaCl, or 40% H3PO4

Environmental Protection

  • NEMA 4X
  • IP66

Temperature Sensor

  • Pt1000 or 3k Balco

Display

  • Dual 5-digit, 7-segment backlit LCD

Accuracy

  • Analog output: ±0.25% FSD, ±0.5% of reading (whichever is the greater)
  • Conductivity: ±0.5% measurement range per decade

Resolution

  • 0.1% at 10 mA , 0.05% at 20 mA

Communication

  • Profibus DP

Mounting

  • Panel mounting
  • Pipe mounting
  • Wall mounting

Power Supply

  • 85-265 Vac
  • 12-30 Vdc

Power Consumption

  • 10 W

Certifications & Approvals

  • EMC
  • CE
  • UL

Operating Temperature

  • -20° to 55° C (-4° to 131° F)

Storage Temperature

  • -25° to 75° C (13° to 167° F)

Humidity

  • Up to 95% RH non condensing
