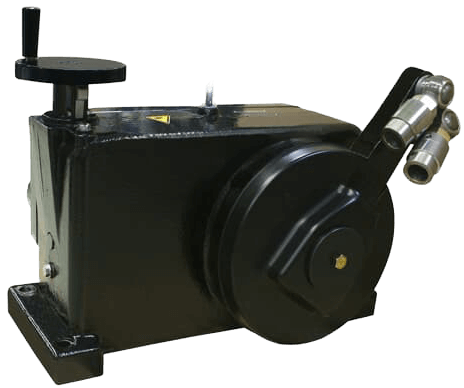

RHD4000 Electrical ​Rotary Actuator

Brand: ABB Group

Compact actuator for the operation of final control elements with rotary movement. For continuous positioning, rated torque 4000 Nm (3000 lbf-ft). The actuator thrust rod transfers the force directly to the final control element.
Features
  • Process optimization thanks to maximum control precision
  • Maintenance-free up to 10 years
  • Electrical actuator for continuous positioning, three-point position control, or bus control
  • Stallproof without the need for position- or torque-dependent shut-off
  • Adjustable mechanical limit stops for defined operating range
  • Handwheel for emergency operation
  • Signal and power input only via separate, microprocessor-controlled electronic unit

Specifications

Brand

Rated Speed

  • RHD4000-10: 10 to 900 s/90°
  • RHD4000-40: 40 to 900 s/90°

Operating Angle

  • Min 35° / max. 300°

Operating Mode

  • S9 – 100%,stall-proof acc. to IEC 60034-1/EN 60034-1

Humidity

  • ≤ 95% annual average, no condensation

Environmental Protection

  • IP66
  • NEMA 4X

Ambient Temperature

  • −30° to 85° C (-20° to 185° F)

Storage / Transport Temperature

  • −40° to 70° C (-40° to 160° F)
  • Long-term storage: −30° to 40° C (-22° to 104° F)

Mounting Position

  • Any position

Coating

  • 2-layer component epoxy (RAL 9005, black)

Torque

  • Nominal: 4,000 Nm (2,950 lbf-ft), adjustable to 0.5, 0.75 or 1 × nominal torque
  • Starting: 1.2 × nominal torque (break-away torque in end positions for short time 2 × nominal torque)

Supply Voltage

  • 115 Vac (94-130 V) or 230 Vac (190-260 V); 47.5 to 63 Hz; single-phase

Current Consumption

  • 5.8 A at 115 V
  • 2.7, 10 A at 230 V

Communication

  • Conventional communication
  • PROFIBUS DP
