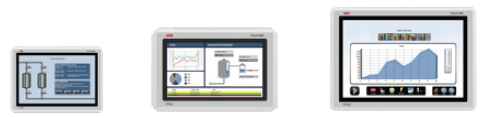

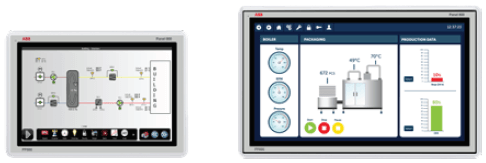

Panel 800 Standard Panel

Brand: ABB Group

The Standard range of Panel 800 comprises of PP875, PP881, PP883, PP886 and PP895 that are designed for cost-effective, safe and efficient monitoring and controlling complex HMI applications.
These panels provide improved process visibility through high-resolution widescreen in 7”, 10.1”,12.1”, 15.4” and 21.5” TFT/LED display, quicker access to multiple applications and an easy-to-use touchscreen interface.

These panels are made of a strong yet lightweight die-cast, powder-coated aluminum housing and are designed to operate at temperature ranges from -10° to 60°C / 0° to 50° C. The IP66/IP65 rating front casing enables them to withstand wet, dusty and demanding environments.

Specifications

Brand

Display Size

  • 7"
  • 10.4"
  • 4.3"
  • 12.1"
  • 15.4"

Display Resolution (Ratio)

  • PP874: 800 x 480 (16:9)
  • PP871: 480 × 272 (16:9)
  • PP877 & PP877K: 640 × 480 (4:3)
  • PP874K: 840 x 480 (16:9)
  • PP882 & PP885: 1280 x 800 (16:10)

Display Color

  • TFT-LCD 64k LED backlight
  • TFT-LCD 262k LED backlight

Brightness (cd/m²)

  • 450
  • 350
  • 400

Processor

  • ARM9 400 MHz
  • Intel® Atom (1.1GHz)

Main Memory

  • 128 MB (DDR2)
  • 1 GB (DDR2)

Ethernet (Shielded RJ 45)

  • 1 × 10/100 Base-T
  • 2 built-in ports: 1 x 10/100/1000 Mbit/s, 1 x 100 Mbit/s

USB

  • 1 x USB 2.0, max. 200 mA
  • 3 × USB Host 2.0, max. 500 mA
  • 3 × USB 2.0, max. 500 mA

Serial Port 1/2

  • 2 combined ports: 2 × RS232, 2 × RS422/485

Mounting

  • Panel Mount and VESA 75 × 75
  • Panel Mount and VESA 50 × 50

Dimension (W × H × D)

  • PP871: 145 × 103 × 49 mm
  • PP874: 204 × 143 × 49 mm
  • PP877 & PP874K: 280 × 228 × 51 mm
  • PP877K: 410 × 286 × 83 mm

Weight

  • 0.5 to 3.8 kg

Frame Material

  • Black powder-coated aluminum, polyester Autoflex EBA 180L
  • Powder-coated aluminum, Polyester Autotex F150. Membrane switch keyboard with metal domes.

Power Supply

  • 24 Vdc (18-32 Vdc)

Power Consumption

  • 3.6 to 24 W

Environmental Protection

  • IP65
  • IP20
  • IP66

Operating Temperature

  • -10° to 60°C
  • PP882 & PP885: -10° to 50° C

Storage Temperature

  • -20° to 70° C

Vibration & Shock

  • 0.7 G / 10 G

Certifications & Approvals

  • WEEE compliance: DIRECTIVE/2012/19/EU
  • RoHS compliance: EN 50581:2012
  • CE, UL, DNV
  • UL, UL 508

Humidity

  • 5% to 85% relative humidity, non-condensing
