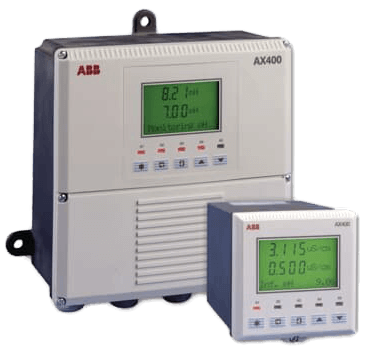

AX455 USP <645> Dual Channel Transmitter for 2-Electrode Conductivity Cell

Brand: ABB Group

The AX455 conductivity transmitter is designed for use with two of ABB’s 2-electrode conductivity cells for complete compliance with USP <645>. The cost-saving, dual channel transmitter measures conductivity with exceptional accuracy and performance. It incorporates the latest technology to provide a highly reliable, flexible, feature-packed device that satisfies the needs of the Global pharmaceutical industries.The unit provides an automatic Stage 1 alarm for USP monograph 645 and comes complete with all requisite documentation.
Features
  • Cost effective
    • select one or two conductivity inputs or combine conductivity and pH/Redox (ORP) in one analyzer
  • Reduced installation cost
    • easy access terminations; reduced panel space
  • High functionality at minimum cost
    • conductivity, resistivity, difference, ratio, % passage, % rejection and inferred pH calculations
  • Expanded monitoring and control
    • add-on option board provides a total of five alarm relays and fourcurrent outputs
    • service logbook providing historical data
  • Energy saving
    • high visibility, backlit display with auto switch-off function
  • Reduced yearly maintenance costs
    • 30 Vdc option negates the need for costly safety tests

Specifications

Brand

Mounting

  • Wall mounting
  • Pipe mounting
  • Panel mounting

Environmental Protection

  • NEMA 4X
  • IP65

Power Supply

  • 12-30 Vdc
  • 85-265 Vac

Power Consumption

  • 10 W

Certifications & Approvals

  • UL
  • CE
  • EMC

Communication

  • Profibus DP

Range

  • Programmable 0 to 0.5 to 0 to 10,000 µS cm–1

Span

  • (10 to 10,000) x cell constant

Accuracy

  • >±1% of reading (10,000 µS cm–1)
  • >±0.01% of span (0 to 100 µS cm–1)

Operating Temperature

  • -20° to 55° C (-4° to 131° F)
  • Conductivity: -10° to 200° C (14° to 392° F)

Storage Temperature

  • -25° to 75° C (13° to 167° F)

Temperature Compensation

  • Conductivity: –10° to 200° C (14° to 392° F)

Display

  • Dual 5-digit, 7-segment backlit LCD

Temperature Sensor

  • Programmable Pt100 or Pt1000

Humidity

  • Up to 95% RH non condensing
