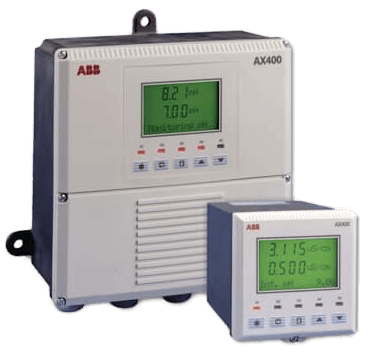

AX418 Dual Channel Transmitter for DO and 2-Electrode Conductivity Cell
Brand: ABB GroupThe AX418 conductivity and dissolved oxygen transmitter is designed for use with ABB’s 2-electrode conductivity cells and 9408 dissolved oxygen sensors. The cost-saving transmitter simultaneously measures dissolved oxygen and conductivity or resistivity with exceptional accuracy and performance. It incorporates the latest technology to provide a highly reliable, flexible, feature-packed device that satisfies a diverse range of process monitoring and control applications
Specifications
Brand
Mounting
- Wall mounting
- Panel mounting
- Pipe mounting
Measurement Range
- up to 10,000 µS/cm, 18.2 MΩ/cm, 8,000 ppm total dissolved solids
- 0 to 20 ppm and 0 to 200% saturation
Power Supply
- 12-30 Vdc
- 85-265 Vac
Power Consumption
- 10 W
Environmental Protection
- IP65
- NEMA 4X
Display
- Dual 5-digit, 7-segment, backlit LCD
Operating Temperature
- -20° to 55° C (-4° to 131° F)
Storage Temperature
- -25° to 75° C (13° to 167° F)
Humidity
- Up to 95% RH non condensing
Certifications & Approvals
- UL
- CE
- EMC
Documentation
Certificate
Manual
- Instruction - AX4xx and AV4xx series transmitters | Display driver selection | LCD display module (AX400/0295) pdf 1.7 MB
- Manual - AX410, AX411, AX413, AX416, AX418, AX450, AX455 and AX456 | Single and dual input analyzers for low level conductivity pdf 1.3 MB
- Manual - User guide supplement - AX400 series | Single and dual input analyzers | PROFIBUS® datalink description pdf 602 KB
- User guide - AX418, AX438, AX480, AX468 and AX488 Single and dual input analyzers for dissolved oxygen pdf
