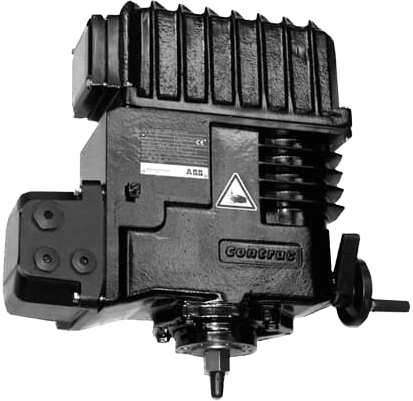

LME620-AI / LME620-AN Electrical Linear Actuator

Brand: ABB Group

Compact actuator for the operation of final control elements with preferably linear movement. For continuous positioning, rated force 4 kN (900 lbf). The actuator thrust rod transfers the force directly to the final control element.
Features
  • With integrated electronic unit or for use with separate electronic unit
  • Electrical actuator for continuous positioning or step control
  • Stallproof without the need of position or torque dependent switch-off
  • Three-phase asynchronous motor
  • Sturdy gear unit with highly efficient design
  • Internal rotary - linear conversion
  • Hand wheel for emergency operation
  • Integrated sensors for position and temperature

Specifications

Brand

Rated Speed

  • 0.5 to 2.0 mm/s

Stroke Range

  • Min 0 to 12 mm, max. 0 to 60 mm

Operating Mode

  • S9 – 100 %; stall-proof acc. to IEC 60034-1 / EN 60034-1

Environmental Protection

  • NEMA 4X
  • IP66

Humidity

  • ≤ 95% annual average, no condensation

Ambient Temperature

  • −25° to 65° C (-15° to 150° F)

Storage / Transport Temperature

  • Long-term storage: −30° to 40° C (-22° to 104° F)
  • −40° to 70° C (-40° to 160° F)

Mounting Position

  • Any position; preferably IMV 1 acc. to IEC 60034-7 / EN 60034-7

Coating

  • 2-layer component epoxy (RAL 9005, black)

Force

  • Starting: 1.2 × rated force (break-away torque in end positions for short time 2 × rated force)
  • Rated: 4 kN (900 lbf) (adjustable to 0.5 / 0.75 or 1 × rated force)

Supply Voltage

  • 115 Vac (94-130 V) or 230 Vac (190-260 V); 47.5 to 63 Hz; single-phase

Current Consumption

  • 0.5 A at 230 V
  • 1.0 A at 115 V

Communication

  • Conventional communication
  • PROFIBUS DP

Documentation

Brochure

Catalog

Certificate

Manual
