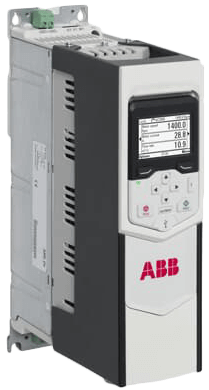

ACS880-x04 Multidrive Module

Brand: ABB Group

The module selection for building multidrive configurations includes inverter, diode supply, IGBT supply, regenerative rectifier, brake and DC/DC converter units. Their modular design and side-by-side mounting make installation fast and easy. Modules with bigger frame sizes are equipped with wheels so they can easily be moved in or out of the cabinet for maintenance purposes. This concept also allows preinstallation of the power cables inside the empty cabinet.

Multidrives can be used wherever several motors form part of a single process. With a compact module design and high power density, the single supply and DC bus arrangement with multiple inverters provides many advantages.
Features
  • Savings in cabling, installation and maintenance costs
  • Reduced component count and increased reliability
  • Reduced line power and line currents. As the energy circulates over the common DC bus, all energy is not taken from the supply network. Energy circulation can be used for motor-tomotor braking without the need for a braking unit or regenerative supply unit

Specifications

Brand

Power

  • 1.5 to 3,200 kW
  • Mains: 3-phase, UN3 380-415 V, ±10%
  • Mains: 3-phase, UN5 380-500 V, ±10%
  • Mains: 3-phase, UN7 525-690 V, ±10%

Frequency

  • Mains: 0 to ±598 Hz
  • Mains: 50/60 Hz ±5%

Motor Control

  • Direct torque control (DTC)

Efficiency

  • 98% at nominal power

Certifications & Approvals

  • TÜV
  • RCM, EAC
  • cULus, UL, CSA
  • EMC
  • RoSH
  • ATEX
  • TVD
  • CE

Storage / Transport Temperature

  • -40° to 70° C

Altitude

  • 1,000 to 4,000 m with derating of 1%/ 100 m
  • 0 to 1,000 m without derating

Environmental Protection

  • IP00

Cooling Type

  • Dry clean air cooling
