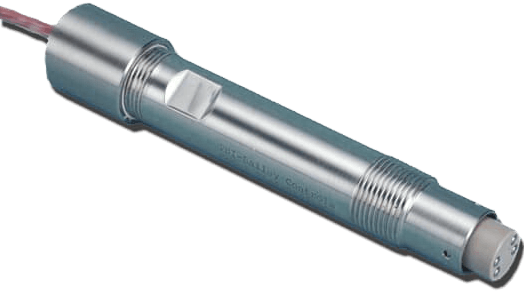

TB461 / TB465 Insertion/Submersion Type Stainless Steel Electrode
Brand: ABB GroupRuggedly constructed of 316 stainless steel, these sensors withstand the most demanding processes and measurement requirements. TB46X insertion / submersion sensors are easily installed into process lines and vessels by the 3/4 in NPT insertion threads or immersed directly into fluids by the back threads.
TB46X hot-tap sensors are directly inserted and removed from lines and vessels without disturbing the process via either a 11/2 in normal or 11/4 in full port ball valve (provided separately). This series is the most versatile offered
by ABB. Full spectrum conductivity measurement is achieved by the wide rangeability of the sensor.
Features- In-line / immersion
- Interchangeable and replaceable electrode tips
- Direct measurement above 100° C (212° F) without coolers with proper anti-flashing installation
- Retractable hot-tap
- Interchangeable and replaceable electrode tips
- Accidental sensor blowout prevented by antiblowout lip machined into sensor body
Specifications
Brand
Maximum Pressure
- Inline / submersible: 1,550 kPa (15.5 bar, 225 psi) at 200° C (392° F)
- Hot-tap: 689 kPa (6.89 bar, 100 psi) at 200° C (392° F)
Maximum Temperature
- 200° C (392° F)
Body Material
- 316 stainless steel
Material of Construction
- Electrode & compression fittings: 316 stainless steel
- Insulator: PEEK
- O-rings: Viton, EPDM, Kalrez
- Compression fitting: Nylon (ball valve insertion only)
- Compression fitting: titanium
Measurement Range
- TB461: 0 to 2,000,000 μS/cm
Insertion Length
- 2.5" to 36"
Compression Fitting
- 1-1/4" NPT
- 1" NPT
- 1-1/2" NPT
Cable Length
- 1.5 to 30.5 m (5 to 100 ft)
