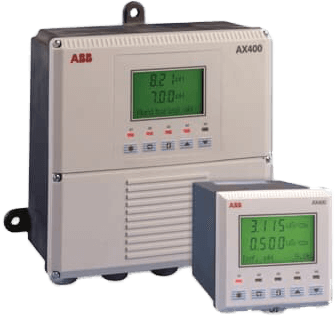

AX460 pH/Redox (ORP) Analyzer
Brand: ABB GroupThe pH / Redox (ORP) Analyzer AX460 is used with glass, enamel and antimony pH electrodes and metal redox sensors providing measurements with exceptional accuracy and performance. It incorporate the latest technology to provide a highly reliable, yet flexible, feature-packed device that satisfies a diverse range of process monitoring and control applications. Applications include water and waste-water treatment and process lines in Water, Power, Chemicals, Pharmaceuticals, Pulp & Paper and Food & Beverage industries.
Features- Cost effective
- select one or two pH/Redox (ORP) inputs or combine pH/Redox (ORP) and conductivity in one analyzer
- Reduced installation cost
- easy access terminations; reduced panel space
- High functionality at minimum cost
- three alarms and two fully isolated current outputs
- integral water / chemical sensor cleaner control
- integral PID controller
- Expanded monitoring and control
- add-on option board provides a total of five alarm relays and four current outputs
- service logbook providing historical data
- On line assurance of reliability
- comprehensive sensor and instrument self-checking
- Energy saving
- high visibility, backlit display with auto switch-off function
- Reduced yearly maintenance costs
- 12 to 30 V DC option negates the need for costly safety tests
Specifications
Brand
Range
- –2 to 16 pH
- –1200 to +1200 mV
Span
- Any 2 pH span or 100 mV min.
Resolution
- 0.01 pH
Accuracy
- 0.01 pH
Temperature Sensor
- Programmable Pt100, Pt1000 or Balco 3kΩ
Display
- Dual 5-digit, 7-segment backlit LCD
Communication
- Profibus DP
Controller Type
- P, PI, PID (configurable)
Mounting
- Pipe mounting
- Panel mounting
- Wall mounting
Power Supply
- 12-30 Vdc
- 100-240 Vac, 50/60 Hz (90-264 Vac)
Power Consumption
- 10 W
Operating Temperature
- –20° to 55° C (–4° to 131° F)
Storage Temperature
- –25° to 75° C (–13° to 167° F)
Humidity
- Up to 95% RH non condensing
Certifications & Approvals
- CE
- UL
- EMC
- LV Directives
