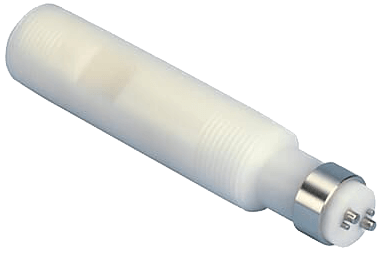

TB468 Insertion/Hot-Tap Type Hastelloy C Electrode
Brand: ABB GroupThe TB468 conductivity cell is available in either insertion (TB468-0) or hot tap styles (TB468-3). The insertion style is also submersible. A Kynar (PVDF) body and Hastelloy C electrodes allow use in aggressive applications where 316 stainless steel is not advised.
Features- Corrosion resistance
- Hastelloy Electrodes
Specifications
Brand
Maximum Pressure
- TB468-0: 689 kPa (6.89 bar, 100 psi)
- TB468-3: 275 kPa (2.75 bar, 40 psi)
Maximum Temperature
- Tb468-0: 50° C (122° F)
- TB468-3: 90° C (194° F)
Body Material
- Kynar (PVDF)
Material of Construction
- Hot-tap sheath, pressure ring and elecrodes: Hastelloy C
- Hot-tap compression fitting: PTFE
Cable Length
- 1.5 to 30.5 m (5 to 100 ft)
Sensor Style
- Insertion of immersion
- Retractable hot-tap
