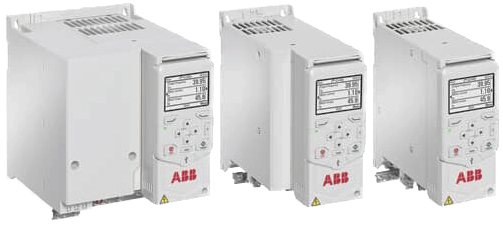

ACH480-04 Drive for HVAC
Brand: ABB GroupDespite its small size, the ACH480 drive has complete functionality for controlling fans, pumps, compressors, and more complex HVAC equipment like air-handling units. While the built-in features significantly reduce installation time, the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance.
Product features, such as coated boards, earth fault protection, undervoltage control, and the ability to operate at an ambient temperature of 50 °C without derating, ensure process reliability. Every drive is tested, verifying its performance and all protective functions.
Features- Cabinet-optimized design
- Uniform enclosure height and depth in all power sizes
- DIN-rail and screw mounting
- Zero side clearance
- Easy to select, install, commission and use
- HVAC-specific features integrated as standard
- Intuitive control panel with optional Bluetooth capability for better accessibility
- Various languages and communications built inside
- Reliable connectivity with major automation and control systems
- Control of a wide range of motors for any HVAC application
- Based on ABBs all-compatible drive platform
- Optimized energy efficiency
- Wide availability and support
Specifications
Brand
Voltage & Power Range
- Mains: 3-phase, U N 380-480 V, +10%/-15% from 0.75 to 22 kW
- Motor: 0 to UN, 3-phase
Frequency
- Motor: 0 to 599 Hz
- Mains: 48 to 63 Hz
Motor Control
- Scalar and vector
Storage / Transport Temperature
- -40° to 70° C
Operating Temperature
- -10° to 60° C
Humidity
- 5% to 95% RH, no condensation
Environmental Protection
- UL Type 1
- IP20
Power Supply
- External: 1.04 A at 24 Vac/dc ±10% as option
Communication
- External 2-port option: EtherNet adapter for remote monitoring.
- Plug-in option: CANopen, DeviceNet, Profibus DP
- 2-port plug-in option: BACnet/IP, Modbus TCP, PROFINET IO, EtherNet/IP, EtherCAT, EtherNet POWERLINK
- Standard: BACnet MS/TP, Modbus RTU and N2
Certifications & Approvals
- WEEE
- RoHS
- EMC
- LVD
- CE
- UL, EAC, RCM, cUL
- TÜV Nord
Altitude
- 0 to 1,000 m
- Reduced by 1% per 100 m 1,000 to 4,000 m
Input & Output
- 2 analog input/output
- 6 digital input
- 3 relay output
Documentation
Brochure
- ABB drives and controls. The green guide to more profitable business - Product guide pdf 8.2 MB
- Data center cooling. Taking uptime, sustainability and energy efficiency to a new level pdf 1.3 MB
- District heating pdf 2.2 MB
- Heating, ventilation and air conditioning in buildings pdf 2.2 MB
- Tunnel ventilation and drainage. Securing safety, reliability and efficiency for critical infrastructures pdf 1.5 MB
Catalog
Certificate
- ACH480-04 EU Declaration of conformity - Summary pdf 58 KB
- ACH480-04 EU Declaration of conformity Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU pdf 60 KB
- ACH480-04 EU Declaration of conformity Machinery Directive 2006/42/EC pdf 48 KB
- ACH480-04 EU Declaration of conformity RoHS II 2011/65/EU pdf 59 KB
- ACS480-04 and ACH480-04 TÜV certificate for STO pdf 810 KB
Manual
- ACH480 drives hardware manual pdf 7.8 MB
- ACH480 HVAC control program firmware manual pdf 6.4 MB
- ACH480 HVAC control program firmware manual - Drive composer version pdf 6.2 MB
- ACH480 quick installation and start-up guide pdf 2.5 MB
- ACX-AP-x assistant control panels user's manual pdf 2.5 MB
- DPMP-01 control panel mounting platform kit installation guide pdf 381 KB
- DPMP-02/03 mounting platform for control panels pdf 248 KB
- Grounding and cabling of drive systems reference manual pdf 1,022 KB
- UL Type 1 kit QIG for ACS380 and ACS480 frames R3 to R4 pdf 4.0 MB
- UL Type 1 kit for ACS380 and ACS480 frames R0 to R2, installation guide pdf 3.5 MB
