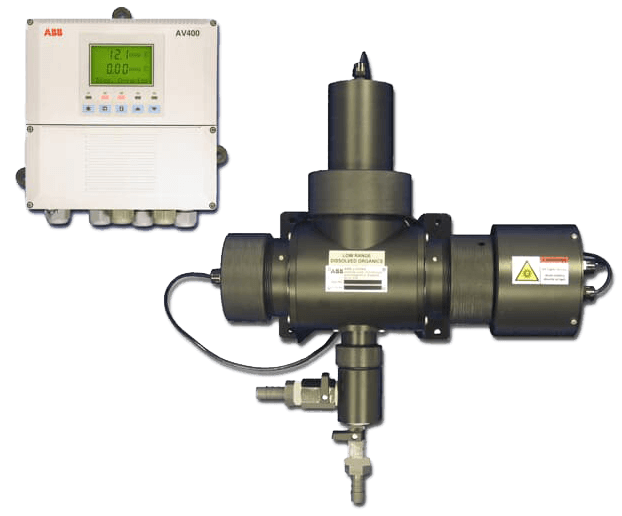

AV410 Dissolved Organics Monitor

Brand: ABB Group

AV410 single-channel UV254 low-level dissolved organics monitors (0 to 20 mg-1C) are designed for use on potable water treatment plants. In particular, they can be used to monitor the quality of the outlet from sand and carbon filters to provide a THM precursor measurement.

Long term field trials have shown that maintenance demands on these applications are minimal.
Features
  • Dual input gives two measurements in one instrument, each input can be either high range or low range
    • cost-effective
  • Surrogate color measurement
    • significant savings on operational costs through lower maintenance requirements
  • Savings on alum or ferric are achieved on potable water treatment plants
    • coagulation control cost saving
  • Less alum, less sludge
    • reduced sludge disposal costs
  • THM (trihalomethanes) precursor alert
    • provides advanced warning of increased risk of THM development
  • Automatic compensation for turbidity
    • reduces initial capital expenditure, minimizing operational costs
  • Reagentless operation
    • significant savings in operational expenditure
  • On-line diagnostics
    • cleaner failure, loss of signal, out of sample

Specifications

Brand

Range

  • 0 to 20 mgl–1 C

Linearity

  • ±2% of reading or 0.15 mgl–1 C whichever is the greater

Reproductivity

  • ±0.15 mgl–1 C

Sample Temperature

  • 0° to 40° C (32° to 104° F)

Sample Pressure

  • 3 bar (43.5 psi) max.

Flow Rate

  • Sample: 0.5 to 5 L/min-1

Display

  • Dual 4-1/2-digit, 7-segment backlit LCD

Resolution

  • Low range: ±0.01 mgl–1 C
  • Output: 0.1% at 10 mA, 0.05 at 20 mA

Accuracy

  • ±0.25% FSD ±5% of reading

Output

  • 0 to 10 mA, 0 to 20 mA or 4 to 20 mA

Power Supply

  • Optional 12-30 Vdc
  • 100-240 Vac, 50/60 Hz (90-264 V)

Power Consumption

  • 20 W

Environmental Protection

  • IP65

Cable Type

  • N. American 7 x knockouts suitable for 1/2 in. Hubble gland
  • Standard 5 or 7 x M20 cable glands

Operating Temperature

  • 0° to 50° C (32° to 122° F)

Storage Temperature

  • -25° to 75° C (–13° to 167° F)

Humidity

  • Up to 95% RH non-condensing

Certifications & Approvals

  • UL
  • CE
  • EMC
