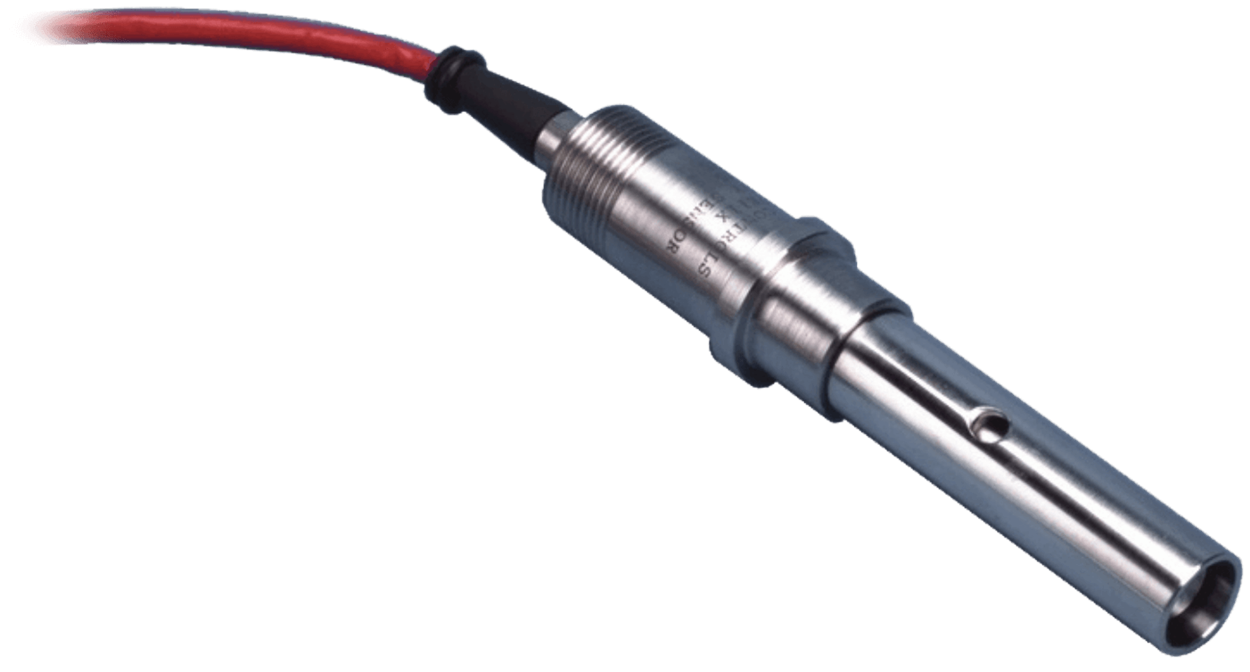

TB264 In-Line Stainless Steel Electrode
Brand: ABB GroupThe TB264 conductivity cell can be installed either in-line using a 25 mm fitting or used for flow cell applications. In-line applications use either an existing 25 mm port or a bushing and holder nut must be purchased. Flow cell installations enable users to calibrate and isolate the sensor for maintenance very easily.
Features- Measurement range from 0 to 199.9 μS/cm and 0 to 19.99 mS/cm
- Resolution to 0.001 μS/cm in lowest range
- Corrosion resistant 316 stainless steel measurement electrodes
- No calibration required
- Rugged design
- Sensor mounts directly into process line
- NEMA 4X cast aluminum junction box
- Provides easy access to process wiring
- High pressure and temperature ratings
- Easy installation into either flow cell or any available 25 mm (0.98 in) port
- Flexible insertion dep
Specifications
Brand
Cell Constant
- 0.01, 0.10, 1.00
Material of Construction
- Sensor body & electrode: 316 stainless steel
- Insulator: PEEK
- O-ring: viton (internal), ethylene propylene (external)
- Juction box: aluminum
Rating Pressure
- Max. 1,379 kPa at 200° C (200 psi at 39° F)
Rating Temperature
- Max. 200° C (392° F)
Measurement Range
- 0 to 1.999 µS/cm and 0 to 19.99 mS/cm
Temperature Element
- Pt1000
Insertion Length
- 100 mm (3.93")
Cable Length
- 1.5 to 30.5 m (5 to 100 ft)
