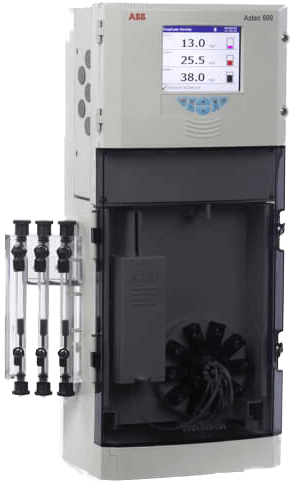

Phosphate analyzer Aztec AW636
Brand: ABB GroupThe Aztec 600 phosphate analyzer enables phosphate measurement in either potable water or municipal wastewater effluents.
Features- Analysis of up to 3 sample streams
- Automatic 2-point calibration
- Automatic background color compensation
- Automatic sample dilution to maximize range
- Self-cleaning measurement system
- Data logging and graphical process trending
- Full audit trail capability
- Secure data archiving to SD Card
Specifications
Brand
Measurement Range
- 0 to 50 ppm PO4 (0 to 50 mg/L)
Chemical Method
- Phosphomolybdenum blue
Background Color Correction
- Compensated at the measurement wavelength
Measurement Frequency
- 1 to 4 measurements per hour (User-selectable)
Accuracy / Maximum Measured Error
- ±5 % of reading or ±0.005 ppm (whichever is the greater)
Repeatability
- ±5 % of reading or ±0.030 ppm (whichever is the greater)
Resolution
- 0.001 ppm or 1 ppb
Measurement Units
- mg/l, ppm, ppb, μg/l
Calibration
- 2-point, automatic calibration
