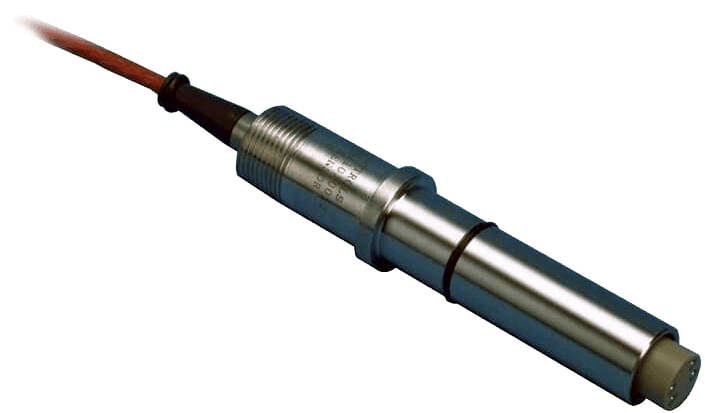

TB464 Flow Cell Type Stainless Steel Electrode
Brand: ABB GroupThe TB464 conductivity cell is available with a bushing nut and union or can be retro-fitted into standard DN 25 bushings with 0.983 to 0.995 in. internal diameters. They are also available for installation into 4TB9515-0190 and 4TB9515-0223 flow cells or the Model TB18 Safe-T-Clean sensor valve. It quickly and easily installs into the flow cell without twisting the sensor cable.
Features- Easy installation into a flow cell, any available 25 mm port, or the TB18 Safe-T-Clean sensor valve
- Flexible insertion depth
Specifications
Brand
Measurement Range
- 0 to 2,000,000 μS/cm
- 0 to 2,000 μS/cm
Maximum Pressure
- 1,378 kPa (13.78 bar, 200 psi)
Maximum Temperature
- 200° C (392° F)
Body Material
- 316 stainless steel
Material of Construction
- Electrodes: 316 stainless steel
- Insulator: PEEK
- O-rings: Viton (internal), ethylene propylene (external)
Process Connection
- 3/4" Male NPT
Cable Length
- 1.5 to 30.5 m (5 to 100 ft)
