AZ100 Zirconia Oxygen Analyzer

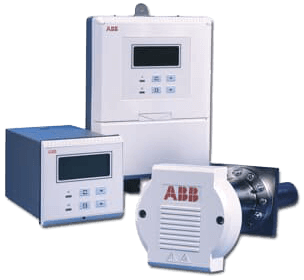

Brand: ABB GroupThe zirconia oxygen analyzer AZ100 is designed primarily for small gas- and oil-fired boilers in industry, power, hospitals and ships. It is also used for inert gas generators and oxygen enrichment applications. The AZ100 is a complete system comprising a zirconia oxygen probe and a wall- or panel-mount instrument.
Features- Cost-effective investment
- Continuous in-line measurement
- Proven stable accuracy within operating temperature range
- Linear and logarithmic ranges up to 25 % ranges
- No reference air supply required thereby simplifying operation
- Innovative sensor technology with typical lifetime > 5 years
- Process temperature range -20° to 600° C (-4° to 1,118° F)
Specifications
Brand
Dispaly
- 5-digit x 7-segment, backlit LCD
- Information: 16-character, single-line, dot-matrix, backlit LCD
Accuracy
- Display resolution: ±1 digit
- Retransmission: ≤3% of reading or ±0.1% O2 (whichever is the greater)
Operating Temperature
- –20° to 70° C (–4° to 158° F)
Storage Temperature
- –25° to 75° C (–13° to 131° F)
Humidity
- ≤ 95% RH non-condensing
Power Supply
- 100-130 V, 200-260 V 50/60 Hz
- Nom. 115/230 Vac 50/60 Hz
Power Consumption
- 47 VA operational
- 6 VA at start up (transmitter)
- 113 VA at start up (sensor)
Mounting
- Panel-mount
- Post-mount
- Wall-mount
Environmental Protection
- IP66
- NEMA 4X (IP65)
Insertion Length
- Probe: 200 to 650 mm (7.9" to 25.6")
Response Time
- Probe: 3 s; Time to t90 35 s (typical)
