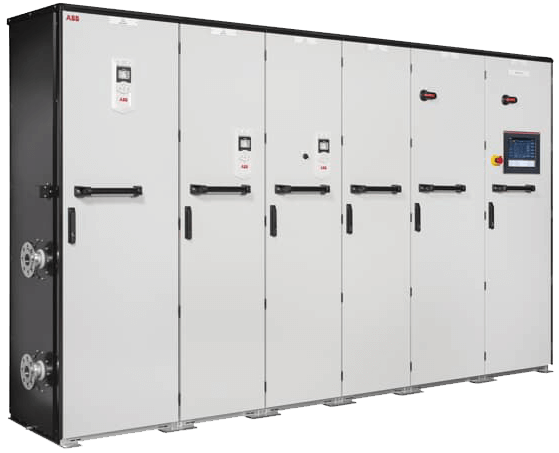

ACS880-307LC Liquid-Cooled Diode Supply Unit

Brand: ABB Group

Our liquid-cooled diode supply units take compactness to a new level. The unit is designed to be compact and light, with integrated AC-chokes, current measurements and inbuilt DC-charging functionality. The units, which can be connected in parallel to achieve higher power, have half-controlled diode-thyristor supply unit.
Features
  • Available for single drives and multidrives
  • One core diode supply module, which can be connected in parallel for higher powers
  • Inbuilt AC-chokes
  • Half-controlled diode-thyristor supply unit
  • DC-charging capability
  • Internal current measurement
  • 6/12 pulse AC supplies are supported

Specifications

Brand

Voltage & Power Range

  • Mains: 3-phase, UN3 380-415 V, +10%/-10%
  • Mains: 585 to 7,027 kVA
  • Motor: 3-phase output voltage 0 to UN3 /UN5 /UN7
  • Mains: 3-phase, UN7 525-690 V, +10%/-10%

Frequency

  • Motor: 0 to ±598 Hz
  • Mains: 50/60 Hz ±5%

Storage / Transport Temperature

  • -40° to 70° C

Operating Temperature

  • Liquid-cooled: 45° to 55° C with derating of 0.5%/1° C
  • Liquid-cooled: 0° to 45° C, no frost allowed

Motor Control

  • Direct torque control (DTC)

Certifications & Approvals

  • cULus, CSA
  • RCM, EAC
  • TÜV
  • RoHS
  • LVD
  • ATEX
  • CE
  • EMC

Environmental Protection

  • IP54
  • IP42
  • IP22

Altitude

  • 0 to 1,000 m, without derating
  • 1,000 to 4,000 m, with derating of 1%/100 m

Humidity

  • 5% to 95% RH, no condensation
