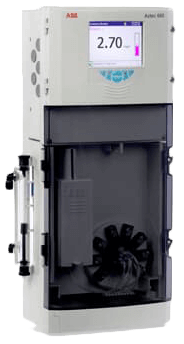

Aztec AW632 Ammonia Analyzer
Brand: ABB GroupIt's never been easier to accurately monitor low levels of ammonia online.
Featuring ABB's intuitive menu-driven software and the unique self-cleaning Aztec fluid handling system, users benefit from an analyser that is both simple-to-operate and maintain.
The Aztec 600 colorimetric ammonia analyzer provides reliable and highly accurate measurement of low level ammonia concentrations for a wide variety of applications from drinking water influent to wastewater effluent.
Features- Analysis of up to 3 sample streams
- Automatic 2-point calibration
- Automatic background color compensation
- Automatic sample dilution to maximize range
- Self-cleaning measurement system
- Intuitive software with full colour graphical display
- Data logging and graphical process trending
- Full audit trail capability
- Secure data archiving to SD Card
Specifications
Brand
Measurement Range
- 0 to 3 ppm NH3 (0 to 3 mg/L)
Measurement Frequency
- 1 to 4 measurements per hour
Accuracy / Max. Measured Error
- ±5% of reading or ±0.005 ppm (whichever is the greater)
Repeatability
- ±5% of reading or ±0.005 ppm (whichever is the greater)
Resolution
- 0.001 ppm or 1 ppb
Calibration
- 2-point, automatic calibration
Operating Temperature
- 5° to 45° C (41° to 113° F)
Humidity
- Up to 95% RH non-condensing
Sample Temperature
- 1° to 40° C (32° to 104° F)
Sample Flow
- Continuous, 200 to 500 ml/min
Sample Pressure
- 5 psi maximum
Display
- 76800 pixel display
- Color, TFT, LCD with built-in backlight and brightness adjustment
Environmental Protection
- IP31
Process Conenction
- Sample connections - Outlet: 10 mm OD x 3/8" BSP elbow
- Sample connections - Inlet: 6 mm OD x 1/4" BSP elbow
Material of Construction
- Main enclosure: Noryl
- Lower tray: 20% glass-loaded polypropylene
- Door: Acrylic
- Electronics enclosure: 10% glass-loaded polycarbonate
Power Supply
- 100-240 Vac max. 50/60 Hz ±10% (90-264 Vac, 45/65 Hz)
- 18-36 Vdc (optional)
Power Consumption
- 75 W max. – AC
- 100 W max. – DC
Certifications & Approvals
- cULus
- CE Mark
- EMC
