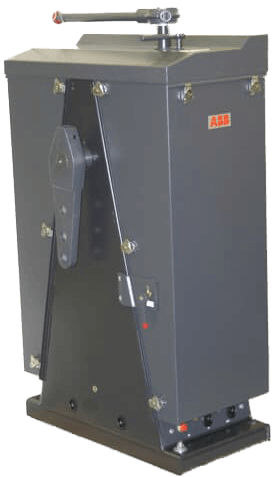

UP5 Universal Pneumatic Rotary Actuator

Brand: ABB Group

Type UP Pneumatic Universal Rotary Actuators regulate dampers, fan inlet vanes, lever-operated valves, turbine governors, fluid drives and other final control elements.

The control signals provide modulating or on/off control power to position devices through mechanical linkage or by direct coupling.

Type UP5 actuators include a double-acting cylinder with a motion conversion mechanism to convert linear to rotary motion.

Specifications

Brand

Operating Torque

  • Max 3,796 Nm (2,800 lbf·ft)

Supply Pressure

  • 276 to 621 kPa (40 to 90 psig) with TZIDC positioners
  • 276 to 690 kPa (40 to 100 psig) with EDP300 and AV positioners

Environmental Protection

  • IP24 (NEMA 3R)
  • IP66 (NEMA 4X)

Certifications & Approvals

  • cFMus
  • CSA

Air Consumption

  • TZIDC/EDP300: < 0.03 kg/h (0.015 scfm)
  • AV: typical 188.8 cm3/s (0.4 scfm) @ 517.1 kPa (75.0 psig)

Process Conenction

  • Pneumatic signal: 1/4"–18 NPT female when using AV11 or AV12 positioners as the control input
  • Air supply: 1/2"–14 NPT female
  • Air failure reset: 1/4"–18 NPT female

Electric Connection

  • Cutouts for 1/2" and 3/4" NPT female

Operating Type

  • Manual operator: gear type with self-locking ratchet

Materials of Construction

  • Seal: nitrile rubber
  • Frame & output shaft: carbon steel
  • Coating on metal parts: corrosion-resistant polyurethane
  • Actuators: High tensile aluminum
  • Top/End covers: sheet metal

Storage Temperature

  • –40° to 85° C (–40° to 185° F)

Documentation

Brochure

Catalog

Manual
